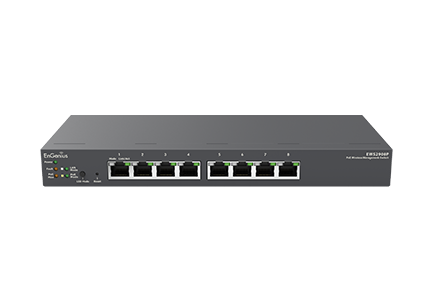

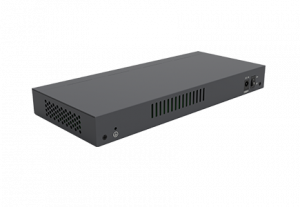

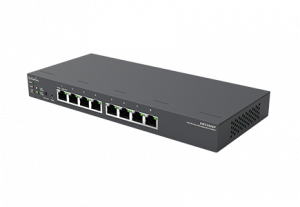

The EWS2908P PoE 8 Port Managed Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Locally manage up to 50 Neutron EWS access points and centrally manage wired and wireless networks via ezMaster. Power compatible PoE devices such as IP cameras, VoIP phones, and APs. The EWS2908P is 802.3af compliant and can support EWS300AP and EWS310AP Access Points and can support any other 802.3af devices. For APs that require PoE+ or 802.3at-compliant power, please use the EWS5912FP Switch.
| File Name | Type |
|---|---|
 EnSky Series Switches Datasheet
|
Data Sheet |
|
EWS2908P fw 1.07.43_c1.9.37
|
Firmware |
|
EWS2908P FW v1.07.40_c1.9.33
|
Firmware |
|
EWS Switch QIG EN
|
Quick Guide |
|
EWS Switch Manual EN
|
User Manual |
|
EWS2908P CE-DoC EU
|
CE Declaration |
If you are unable to find the file, please get it in the download center.
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
8 10/100/1000 Mbps Ports
Forwarding Mode: Store-and-Forward
SDRAM: 256 MB
Flash Memory: 32 MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses
PoE Standard: Ports 1~8 Support IEEE 802.3af
PoE Capable Ports: All Gigabit Ethernet Ports/Up to 15.4 W
55 W
AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A
Reset Button
Desktop/Wall Mount
Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Link/Activity/Speed (per Ethernet port)
– Maximum of 8 Groups/8 Ports per Group
– One-to-One
– Many-to-One
– 802.1D Spanning Tree Protocol (STP)
– 802.1w Rapid Spanning Tree Protocol (RSTP)
– 802.1s Multiple Spanning Tree Protocol (MSTP)
– 8K Entries
– 256 Entries
– IGMP v1/v2/v3 Snooping
– Supports 256 IGMP Groups
– IGMP per VLAN
– IGMP Snooping Query
– IGMP Snooping Fast Leave
– MDL Snooping v1/v2
– Supports 256 MLD Groups
– IGMP per VLAN
– Up to 9,216 bytes
802.1Q Support
– Max 4,094 Static VLAN Groups
802.1p Quality of Service
– 8 Queues per Port
– Strict
– Weighted Round Robin (WRR)
– 802.1p Priority
– DSCP
– Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
Access Control List (ACL)
Layer 2/3
– Supports a Maximum of 50 Entries (ACL)
– Supports a Maximum of 256 Entries (ACE)
– MAC Address
– VLAN ID
– 802.1p Priority
– Ethertype
– IP Address
– Protocol Type
– DSCP
802.1X
– Guest VLAN
– Port-Based Access Control
– Up to 256 MAC Addresses per Port
Port Statistics
System Log
RMON
Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS
– Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images
Cable Diagnostic
Ping Test
Trace Route
RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863
Access Point Auto-Discovery & Provisioning
Access Point Auto IP-Assignment
Access Point Group Management
Remote Access Point Rebooting
Access Point Device Name Editing
Access Point Radio Settings
Band Steering
Traffic Shaping
RSSI Threshold
Fast Roaming
Access Point Client Limiting
Client Fingerprinting
Wireless Security (WPA/WPA2 Enterprise, WPA/WPA2 PSK)
AP VLAN Management
VLANs for Access Point- Multiple SSIDs
Secured Guest Network
Capture Portal
Access Point Status Monitoring
Rogue AP Detection
Email Alert
Wireless Client Monitoring
Background Scanning
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Wireless Coverage Display
Map View
Secure Control Messaging
SSL Certificate
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import / Export
Intelligent Diagnostics
Bulk Firmware Upgrade Capability
One-Click Update
Kick/Ban Clients
Temperature Range
Operating: 32 to 122° F/0 to 50° C
Storage: -4 to 158° F/-20 to 70 ° C
5% – 95%
(1) EWS2908P Switch
(1) Power Cord
(1) RJ45 Console Cable
(1) Rack Mount Kit
(1) Quick Installation Guide
Weight: 1.36 Ibs (0.62 kg)
Width: 9.44” (240 mm)
Length: 4.13” (105 mm)
Height: 1.06” (27 mm)
2 Years
EWS2908P |
EWS2910P |
EWS7952FP |
EWS7952P |
EWS7926EFP |
EWS1200-28TFP |
EWS7928P |
EWS5912FP |
|
|---|---|---|---|---|---|---|---|---|
| Model Number | EWS7952FP | EWS7952P | EWS7928P | EWS5912FP | ||||
| Switch Class | Layer 2 | - | Layer 2 | Layer 2 | Layer 2 | Layer 2 | Layer 2 | Layer 2 |
| Gigabit Ports | 8 | 8 | 48 | 48 | 24 | 24 | 24 | 10 |
| Multi-G Ports | - | - | - | - | - | - | - | - |
| SFP Ports | - | 2 | 4 | 4 | 2 | 4 | 4 | 2 |
| SFP+ Ports | - | - | - | - | - | - | - | - |
| RJ45 Console Port | - | 802.3af | 802.3af | Yes | 802.3af | Yes | Yes | Yes |
| PoE Capable Port | Ports 1 - 8 | - | Ports 1 - 48 | Ports 1 - 48 | Port 1 - 24 | Ports 1 - 24 | Ports 1 - 24 | Ports 1 - 8 |
| Power-over-Ethernet | 802.3af | - | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af/at |
| Total PoE Budget | 55W | 55W | 740W | 410W | 410W | 410W | 240W | 130W |
| Form Factor | 9.45 (Desktop) | - | 19”1U | 19”1U | 19"1U | 19”1U | 19”1U | 13”1U |
| Switching Capacity | 16Gpbs | 20Gbps | 104Gbps | 104Gbps | 56Gbps | 56Gbps | 56Gbps | 24Gbps |
| Packet Forwarding Rate | - | - | - | - | - | - | - | - |
| MAC Address Table Size | 8K | - | 16K | 16K | 8K | 8K | 8K | 8K |
| Continuous PoE Power | - | - | - | - | - | - | - | - |
| Dimensions | 240 x 105 x 27 mm | - | 440 x 310 x 44 mm | 440 x 310 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 440 x 260 x 44 mm | 330 x 230 x 44 mm |
| Cloud Managed Mode | - | - | - | - | - | - | - | - |
| On-premises Managed | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes |
| Standalone Mode | - | - | - | Yes | Yes | - | - | - |
|
