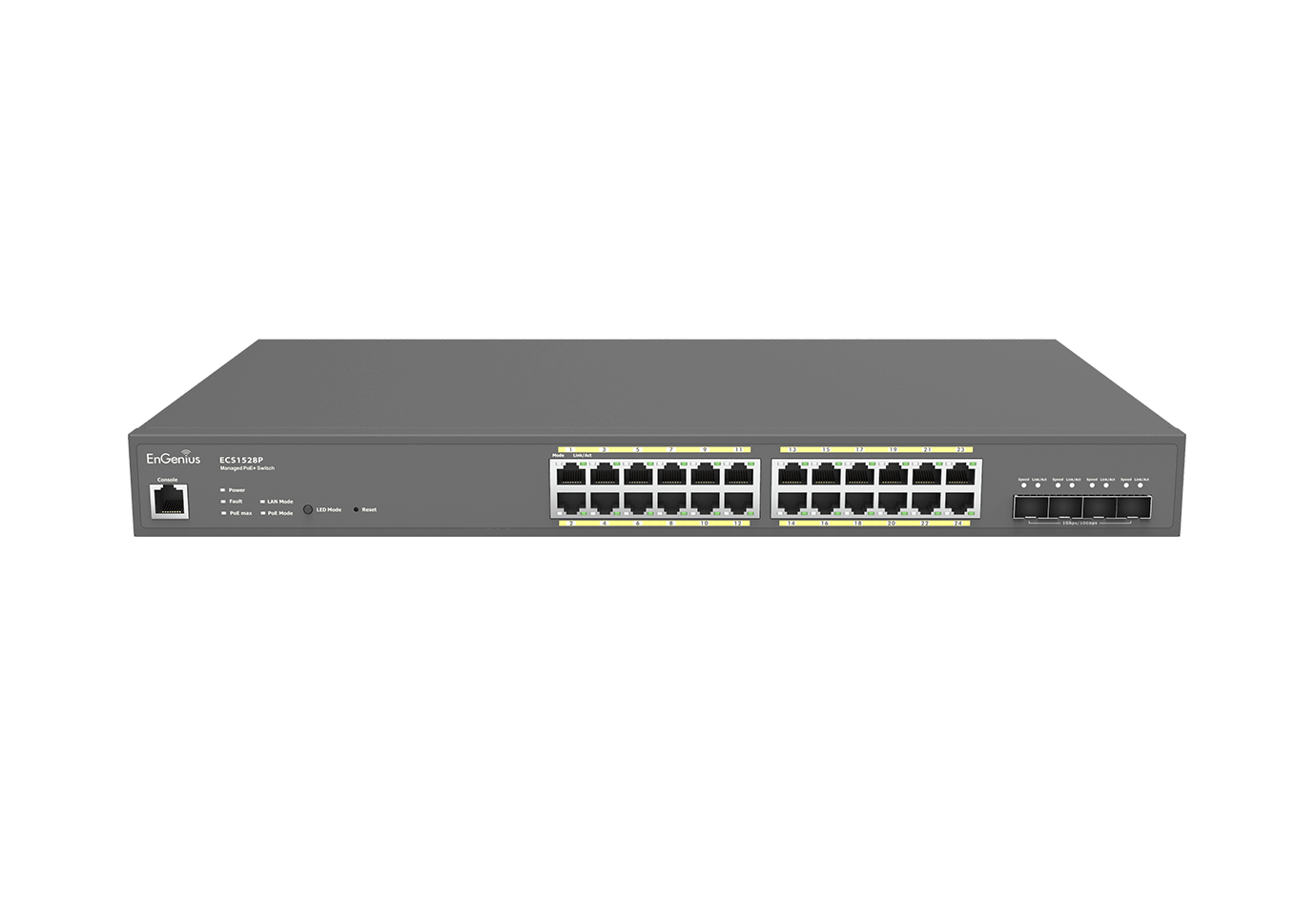

CloudSwitch L2Plus 24 PoE

Cloud Managed 240W PoE 24Port Network Switch

ECS1528P

Product Highlight

EnGenius Cloud ECS1528P is a 24-Port Gigabit PoE+ Layer 2+ Switch with a 240W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

24x Gigabit PoE+ ports for high-speed connections

4x 10Gbps SFP+ uplink ports for bandwidth-intensive applications

24x 802.3af/at PoE+ ports with 240W PoE budget

Zero touch provisioning, centralized cloud management and visualized monitoring

Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone

Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more

Optimized for quality voice and video traffic with Voice-VLAN feature

PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters

PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera

Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades

Downloads

File Name	Type
Cloud Enabled Network Switches Datasheet	Data Sheet
ECS1528P QIG EN	Quick Guide
ECS1528P UM EN	User Manual
ECS1528P/ECS1528FP/ECS1552P/ECS1552FP v1.1.47 firmware	Firmware

If you are unable to find the file, please get it in the download center.

Related Products

Products

Accessories

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

(24)10/100/1000 Mbps Ports

Performance

Switching Capacity: 128Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 128 MB
SDRAM: 512MB
Packet Buffer Memory: 1.5 MB
Address Database Size: 16K MAC Addresses

PoE Capability

PoE Standard: Ports 1~8 Support IEEE 802.3af/at
PoE Capable Ports: All Gigabit Ethernet Ports

PoE Budget

240W

Power Source

AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A

Physical Interface

LED Indicators

Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

802.3ad Link Aggregation

– Maximum of 8 Groups/8 Ports per Group

Spanning Tree Protocol

– 802.1D Spanning Tree Protocol (STP)
– 802.1w Rapid Spanning Tree Protocol (RSTP)
– 802.1s Multiple Spanning Tree Protocol (MSTP)

MAC Address Table

– 8K Entries

Static MAC Address

– 256 Entries

802.1ab Link Layer Discovery Protocol

IGMP Snooping

– IGMP v1/v2/v3 Snooping
– Supports 4094 IGMP Groups
– IGMP per VLAN
– IGMP Snooping Query
– IGMP Snooping Fast Leave

MLD Snooping

– MDL Snooping v1/v2
– Supports 4,094 MLD Groups
– IGMP per VLAN

Jumbo Frame

– Up to 9,216 bytes

802.3x Flow Control

802.3az Energy Efficient Ethernet

VLAN

802.1Q Support

VLAN Group

– Max 4,094 Static VLAN Groups

Voice VLAN

QoS

802.1p Quality of Service

– 8 Queues per Port

Queue Handling

– Strict

– Weighted Round Robin (WRR)

QoS Based on:

– 802.1p Priority
– DSCP

Bandwidth Control

– Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)

Broadcast/Unknown Multicast/Unknown Unicast Storm Control

Access Control List (ACL)
Layer 2/3
– Supports Maximum 50 Entries (ACL)
– Supports Maximum 256 Entries (ACE)

ACL Based on:

– MAC Address
– VLAN ID
– 802.1p Priority
– Ethertype
– IP Address
– Protocol Type
– DSCP

Security

802.1X

– Guest VLAN
– Port-Based Access Control

Supports RADIUS Authentication

Port Security

– Up to 256 MAC Addresses per Port

Port Isolation

DoS Attack Prevention

BPDU Attack Prevention

Monitoring
Port Statistics
System Log
RMON

Management

Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS

SNMP

– Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images

Diagnostic

Cable Diagnostic
Ping Test
Trace Route

MIB/RFC Standards

RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32 to 122° F/0 to 50° C
Storage: -4 to 158° F/-20 to 70 ° C

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS1528P Device

Weight: 4.7 Kg
Width: 260 mm
Length: 440 mm
Height: 44 mm

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Model Comparison

	CloudSwitch L2Plus 24 PoE	ECS1528	CloudSwitch L2Plus 24 Full PoE	CloudSwitch L2Plus 48	CloudSwitch L2Plus 48 Full PoE
Switch Class	Layer 2+	Layer 2+	Layer 2+	Layer 2+	Layer 2+
Gigabit Ports	24	24	24	48	48
Multi-G Ports	-	-	-	-	-
SFP Ports	-	-	-	-	-
SFP+ Ports	4	4	4	4	4
RJ45 Console Port	Yes	Yes	Yes	Yes	Yes
PoE Capable Port	Ports 1 - 24	-	Ports 1 - 24	-	Ports 1 - 48
Power-over-Ethernet	802.3af/at	-	802.3af/at	-	802.3af/at
Total PoE Budget	240W	-	410W	-	740W
Form Factor	19”1U	19”1U	19”1U	19”1U	19”1U
Switching Capacity	128 Gbps	128 Gbps	128 Gbps	176 Gbps	176 Gbps
MAC Address Table Size	16K	16K	16K	32k	32K
Dimensions	440 x 260 x 44 mm	440 x 200 x 44 mm	440 x 260 x 44 mm	440 x 260 x 44 mm	440 x 310 x 44 mm
Cloud Managed Mode	EnGenius Cloud	EnGenius Cloud	EnGenius Cloud	EnGenius Cloud	EnGenius Cloud
On-premises Managed	-	-	-	-	-
Standalone Mode	Yes	Yes	Yes	Yes	Yes
