The EnJet series - Powered by EnGenius

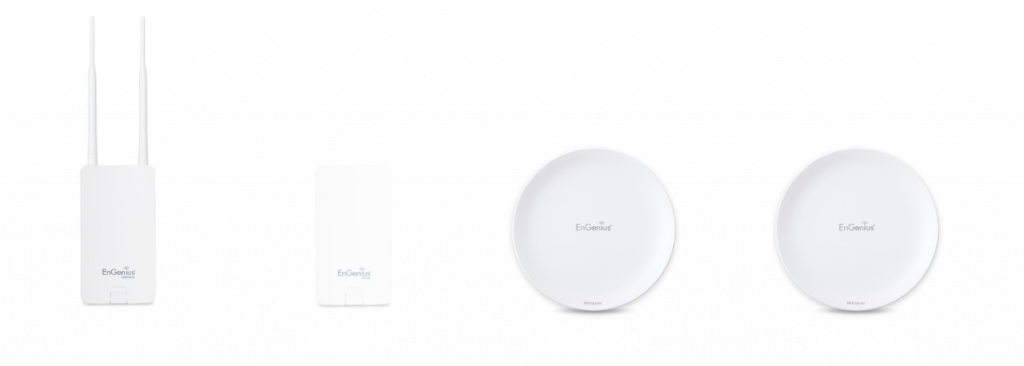

ENS500EXT–AC
Antenna Gain
Output Power
Power Source
Coverage
PSE Output
Range
Device Version
ENS500EXT–AC
5 dBi*2
26 dBm
Proprietary 24V
360˚
NA
1 KM (Recommended)
2.0
ENS500–AC
14 dBi
26 dBm
Proprietary 24V
30˚
NA
3 KM (Recommended)
2.0
EnStation5-AC
19 dBi
26 dBm
Proprietary 24V
30˚
NA
5 KM (Recommended)
2.0
EnStation-AC
19 dBi
26 dBm
802.3at
30˚
802.3af
5 KM (Recommended)
2.0
TECHNOLOGY

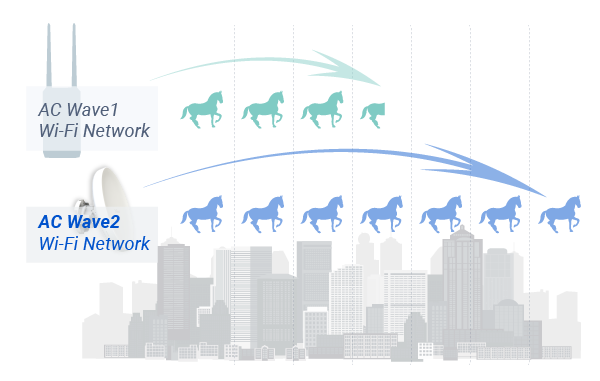

Built-in EnTurbo Engine, High Performance with 11AC Wave 2
Maximizes wireless speed to eliminate lag, ensuring top-notch performance

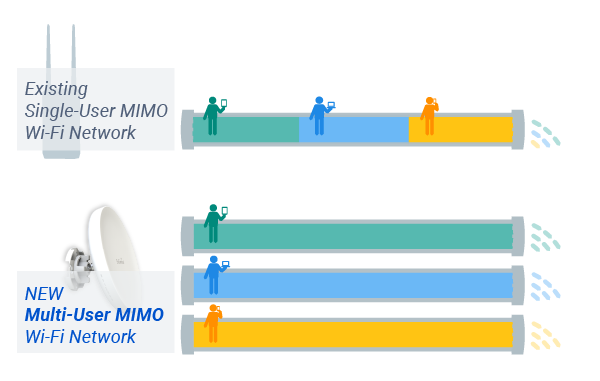

MU-MIMO: Increase client density
Beamforming: Expand network distance

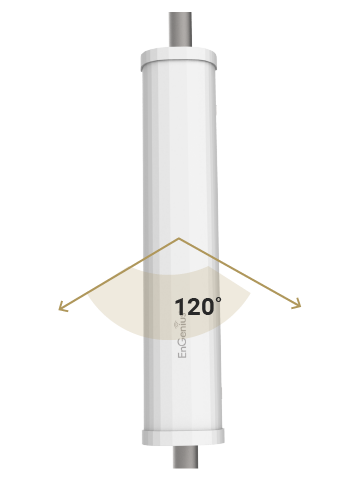

ANTENNA

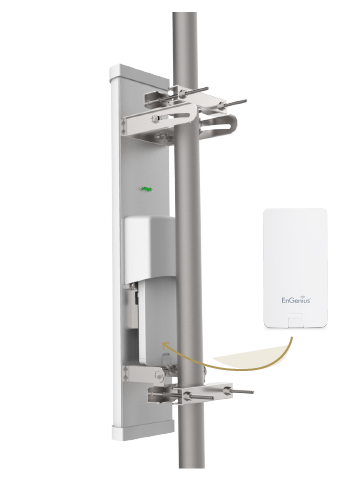

External Sector Antenna for High-Gain Deployment
Extend the wireless network coverage to 120˚ ( ENS500EXT-AC + SA5219 )
Works with ENS500EXT-AC

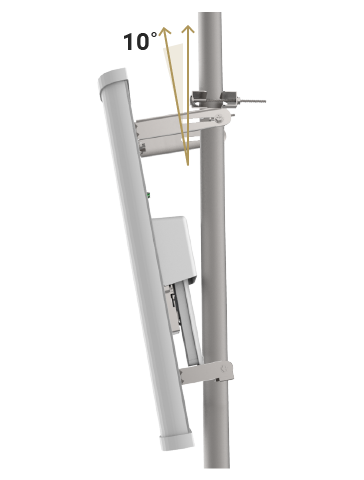

Tilt downward by up to 10˚
120˚ Antenna coverage

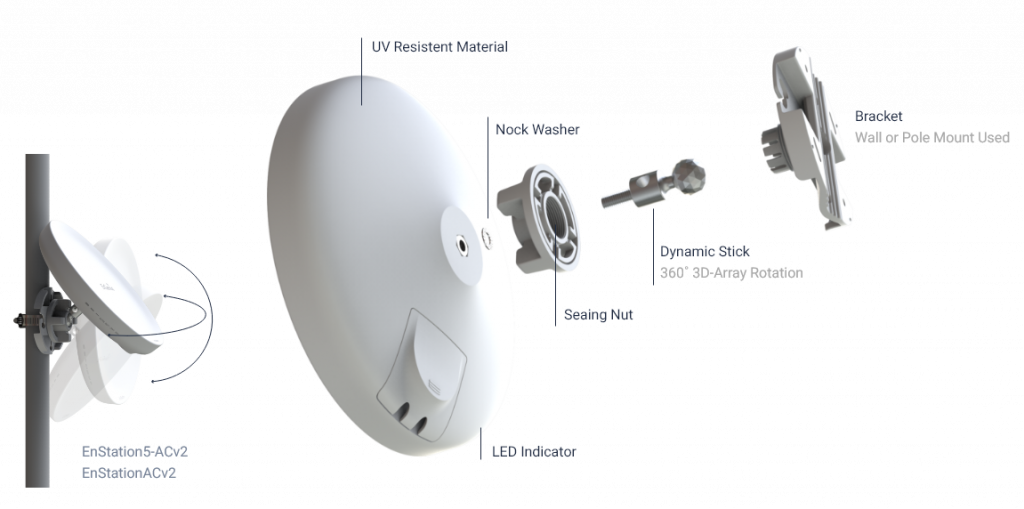

MECHANICS
Designed for Flexible Deployment ( EnStation5-AC/ EnStationAC )
Mount to a variety of surfaces or poles with three-axis antenna design for better positioning

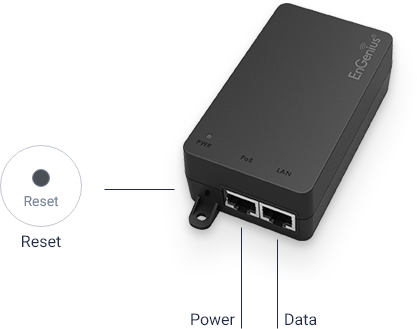

ACCESSORY
Easy Installation and Troubleshooting with PoE Adapter
Able to reboot/reset remotely from PoE adapter and works with 3rd-party switches
PHYSICAL
Performance in Harsh Outdoor Environments
Withstands temperatures ranging from -20˚ C to 60˚C, IP55-standard waterproofing, and anti-UV protection
-20˚C ~ 60˚C
Waterproof IP55
