11ax

Exciting Improvement
for Your Wi-Fi Experience

Introducing the 802.11ax access point, the latest offering from EnGenius with exciting new features and improvements for growth-oriented small and medium business network.

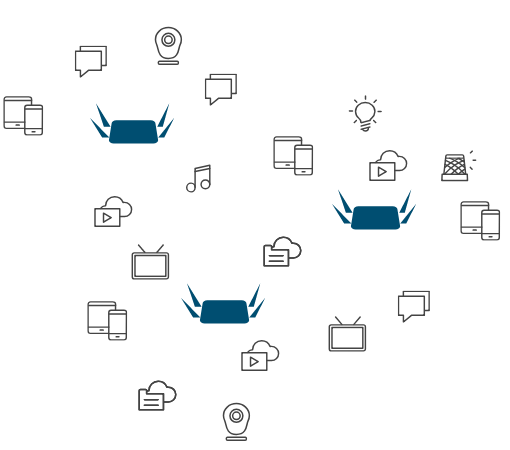

The Wi-Fi Usage Scenario is Rapidly Changing

The key metric to measure Wi-Fi performance is moving away from simplistic theoretical peak speeds to overall capacity in tomorrow's Wi-Fi networks.

Traditional

Theoretical speed for
single AP and few devices

New

Overall capacity for
dense usage scenarios

802.11ax

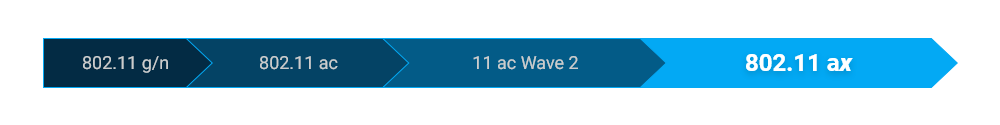

The new 802.11ax technology builds upon real-world deployment of 802.11ac. As the next-generation Wi-Fi, 802.11ax is no longer just about speeds but also about stronger, steadier, and more efficient wireless connections.

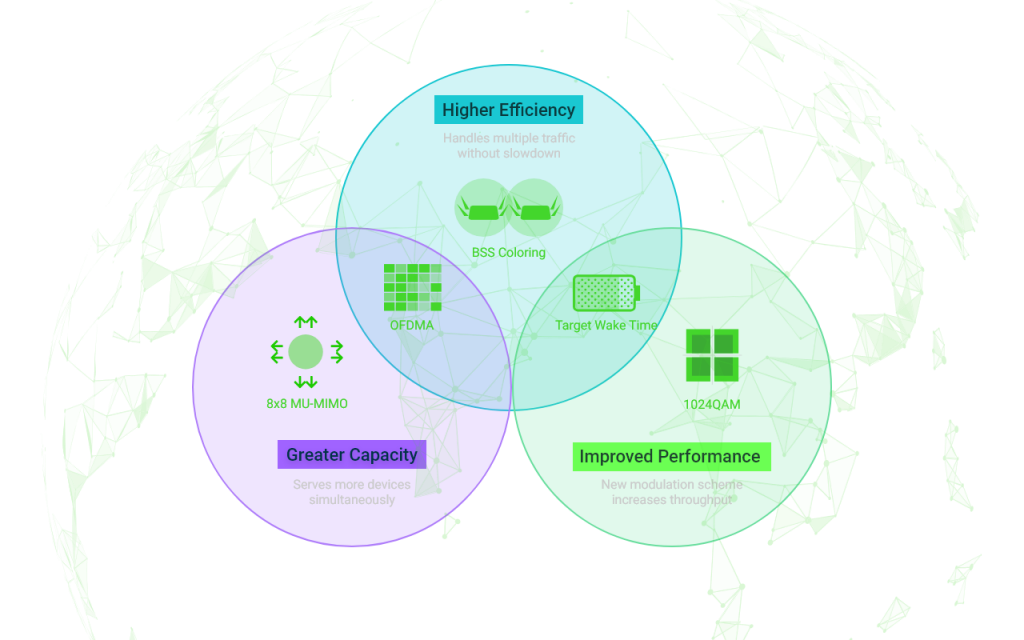

The Improved Features of 802.11ax

Greater Capacity

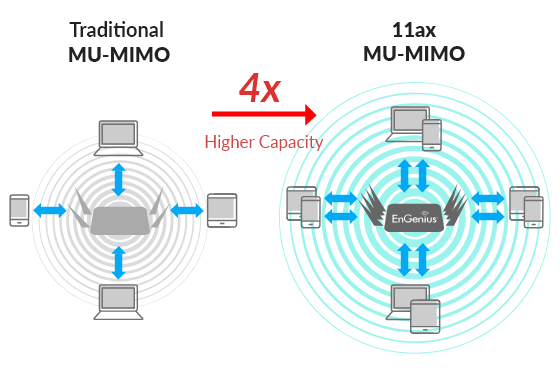

Enhanced MU-MIMO increases capacity up to 4x

802.11ax access points with 8x8 MU-MIMO in Uplink and downlink increase 4x in median throughputs in dense scenarios compared to traditional MU-MIMO

Higher Efficiency

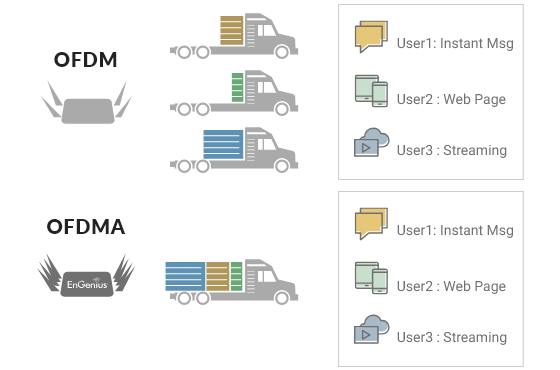

OFDMA schedules to reduce payload and latency

802.11ax adopts OFDMA to allows multiple users with varying bandwidth needs to be served simultaneously. It results in fixed overhead payload size, reduced latency, and increased efficiency.

Higher Efficiency

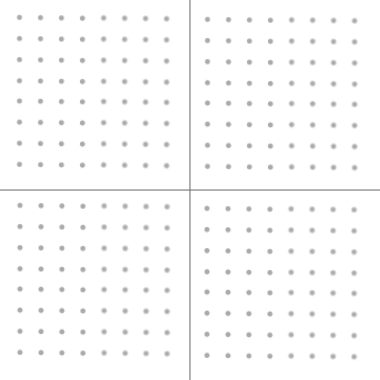

1024 QAM results in a 25% increase in data rates

802.11ax comes with a higher modulation scheme of 1024 QAM, which translates to better throughput and 25% higher capacity than traditional modulation scheme.

Higher Efficiency

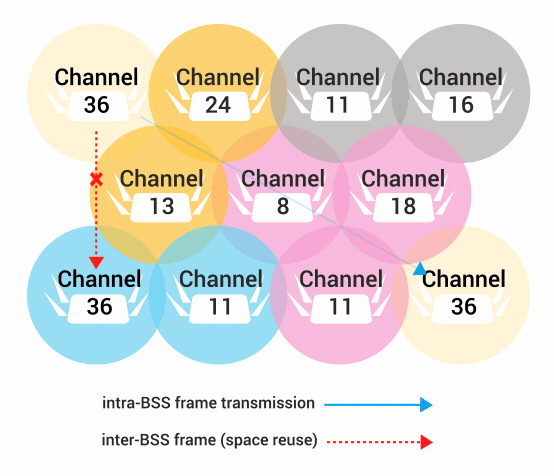

BSS Coloring reduces wait times and interference

802.11ax features BSS coloring which tags packets with a “color” to differentiate between adjacent basic service sets to reduce waiting time and lessen contention. If they have the same color, this is called an intra-BSS frame transmission.Without BSS coloring, only one radio can transmit at a time, and if clients “hear” transmissions from other clients, they defer transmission; which, results in co-channel interference.

Higher Efficiency

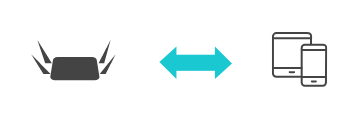

Target wake time saves the battery life of devices

The target wake time feature lets your devices to keep a radio receiver sleeping and wake it up as needed to receive periodic transmissions from an access point. The result is significant power-saving for battery-powered devices.
